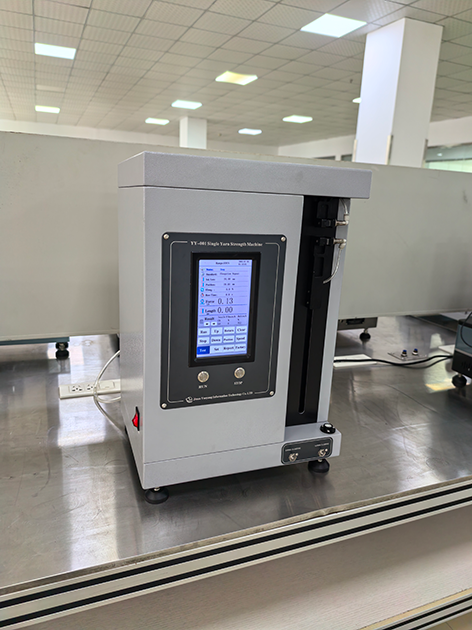

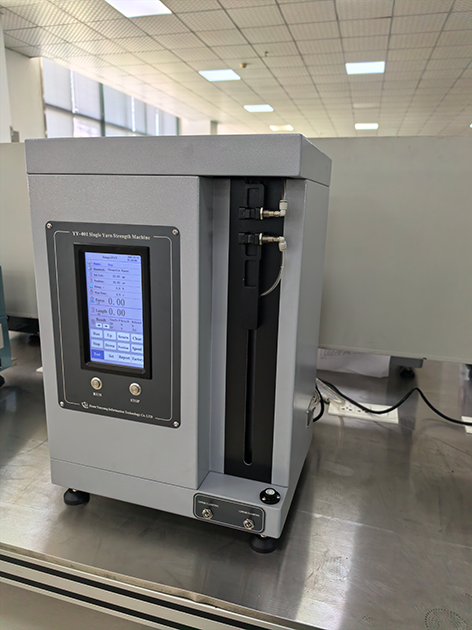

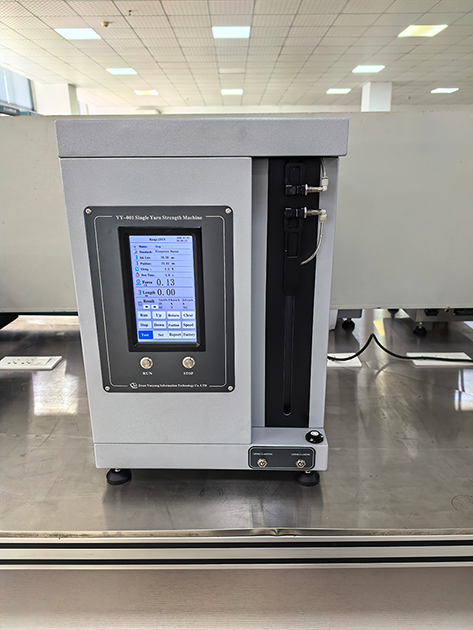

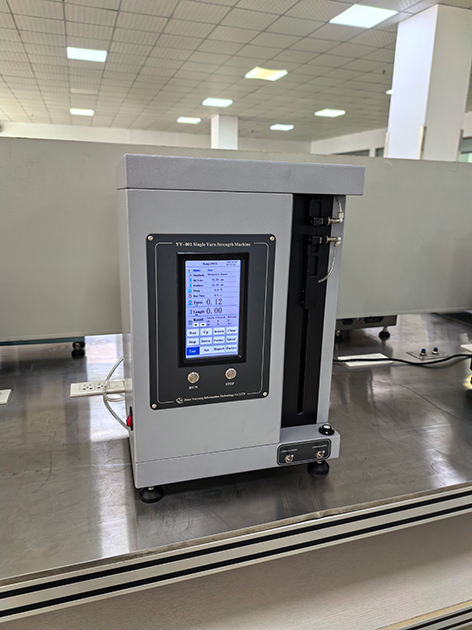

The core working principle of the YY-001 Single Yarn Strength Machine is to apply a constant rate of tension force to a single yarn, record the changes in force and elongation values throughout the process from being stressed to breaking, and then calculate the key mechanical indicators such as breaking strength and breaking elongation rate.
Customized Single Yarn Strength Machine(Pneumatic type) YY-001, Clamps, compared with traditional manual clamps and electric clamps, have core advantages such as stable clamping, high efficiency, minimal damage, and strong controllability in the testing of single yarn tensile strength and elongation at break indicators:
YY-001 Single Yarn Strength Machine(Pneumatic type) features:
- Measure range: 300 cN;
- graduation value: 0.01 cN
- Tensile speed: 2mm/min to 200mm/min (digitally set)
- Maximum extension: 200mm
- pneumatic fixtures
- RS232 software and interface which can connect to PC and make the test report as excell or pdf format.
- Preload clamps (0.5cN,0.4cN,0.3cN, 0.25CN,0.20CN,0.15CN,0.1CN)
