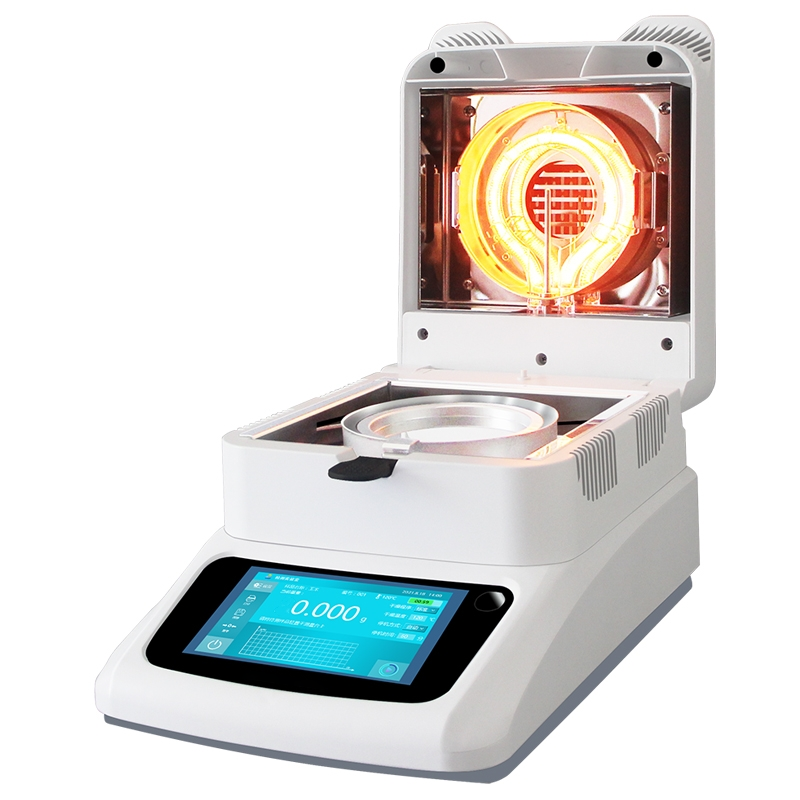

YY-121A Rapid Moisture Meter

Short Description:

Application Scope:

The rapid moisture meter YY-121A is widely used in research institutes, universities, inspection institutes, metrology academies, enterprises and public institutions across various industries such as plastic particles, food, sludge, tea, corn feed, battery powder, metal powder, and dried food. It conducts rapid drying of samples to measure solid content and moisture value.

Testing Principle:

The rapid moisture tester determines the moisture content of samples by the thermogravimetric method and consists of a weighing unit and a heating unit. It can meet the quality control and production needs of the food, pharmaceutical, chemical and other industries.

Customer Benefits:

Obtain accurate results through precise weighing and temperature control; Achieve intuitive operation with step-by-step user guidelines; The robust structure ensures long-term durability of the instrument.

Send email to us

Product Detail

Product Tags

Main Technical Parameters

Specification	YY-121A
Weighing Readability	0.001g
Weighing Range	120g
Moisture Readability	0.01%
Sensor	Domestic
Heating Source	Halogen lamp (annular, 450W)
Heating Mode	Gentle, Standard, Fast
Shutdown Mode	Automatic shutdown, Manual shutdown, Timed shutdown
Result Display	Testing temperature, testing time, moisture content, solid content, weight after drying, dynamic curve, moisture regain, weight loss, dry weight
Data Storage	100 sets
Shutdown Standard	Customizable
Sample Pan Diameter	Φ90mm (stainless steel)
Heating Temperature Range	40-180℃ (1℃ interval)
Display	5-inch touch screen
Communication Interface	Standard RS232 interface, connectable to printers, PCs and other peripheral devices; USB interface customizable
Product Dimensions	220×340×210mm (L×W×H); Net weight: 3.8kg
Outer Carton Dimensions	430×290×330mm (L×W×H); Gross weight: 4.8kg
Standard Configuration	1 main unit, 2 stainless steel sample pans, 1 tripod stand, 1 heat collecting plate, 1 calibration weight, 1 certificate of conformity, 1 instruction manual

Main Features

5-inch programmable color touch screen, which directly displays moisture percentage, solid content percentage, testing temperature and other information on a single interface. Built-in guided Chinese operation and voice prompts allow operators to complete the workflow step by step following graphical instructions. The volume can be adjusted or turned off according to personal habits.
500W high-efficiency annular halogen lamp with fast temperature rise, waterproof and explosion-proof performance. The heating chamber adopts a pure stainless steel cover to ensure more uniform heating of samples.
Equipped with a PT100 temperature sensor for accurate temperature control, featuring waterproof, anti-corrosion and high temperature resistance properties.
Built-in RS232 interface, connectable to thermal printers, label printers or computers; USB interface is also an optional choice.
An alternative to the national standard oven method, with a wide range of applications, suitable for moisture and solid content testing in various industries.
Ready to use out of the box without installation and commissioning; Real-time curve display during the testing process for intuitive observation of moisture changes; Rich data display including curves, time, real-time temperature, moisture and solid content; Fully automatic determination without manual supervision during the process, with an alarm reminder upon completion of measurement.
