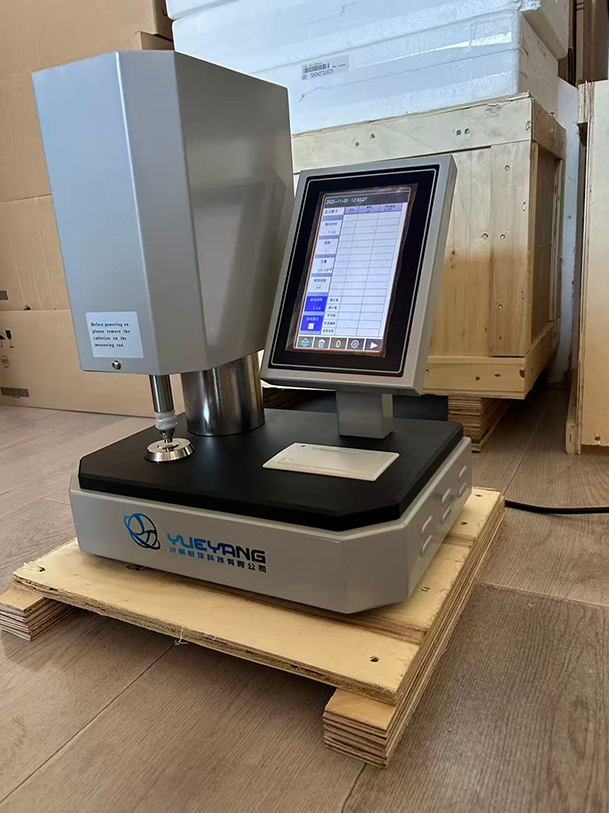

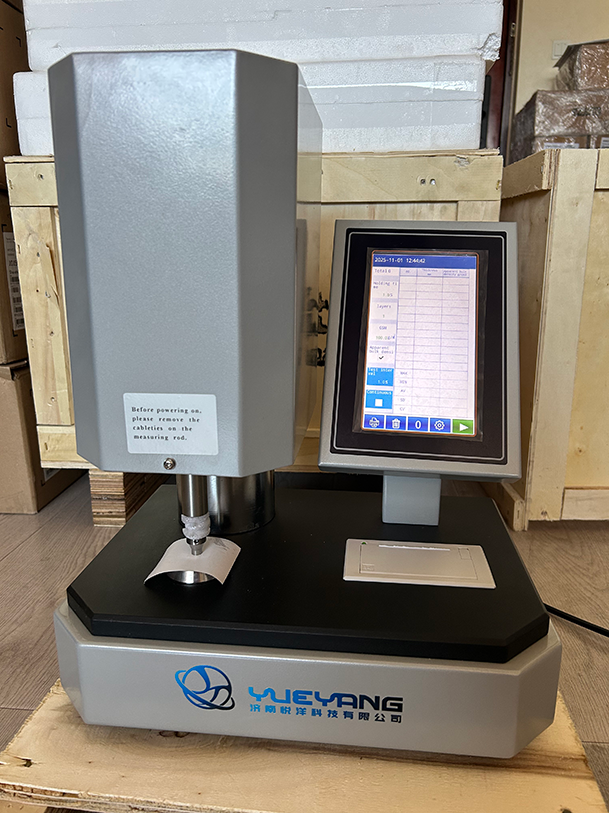

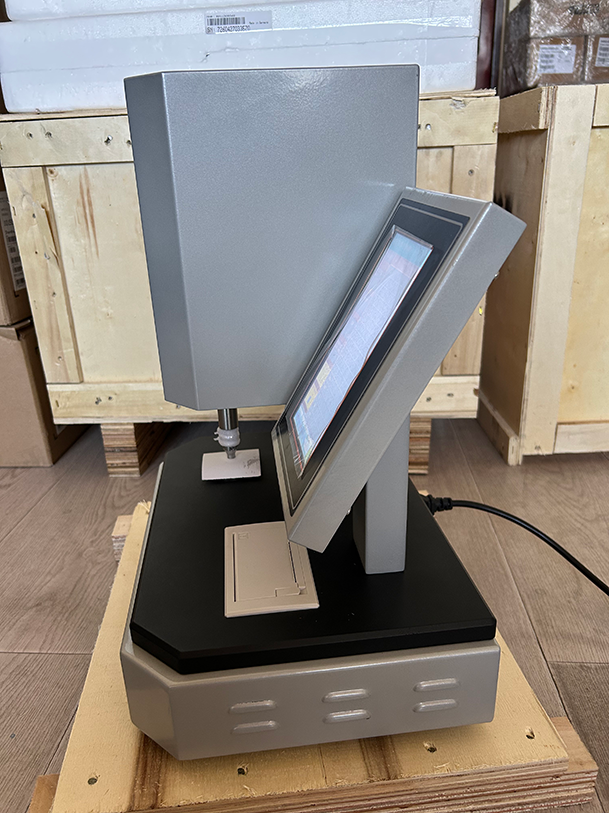

YYP 203A High Precision Film Thickness Tester

Short Description:

1. Overview

YYP 203A Series Electronic Thickness Tester is developed by our company according to national standards to measure the thickness of paper, cardboard, toilet paper, film instrument. YT-HE Series Electronic Thickness Tester adopts high-precision displacement sensor, stepper motor lifting system, innovative sensor connection mode, stable and accurate instrument testing, speed adjustable, accurate pressure, is the ideal test equipment for papermaking, packaging, scientific research and product quality supervision and inspection industries and departments. The test results can be counted, displayed, printed, and exported from U disk.

2.Executive standard

GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534

Send email to us

Product Detail

Product Tags

3.Technical Parameters

Measuring range	（0～2）mm
Resolving power	0.0001mm
Indication error	±0.5％
Indicating value variability	≤0.5％
Measure plane parallelism	＜0.005mm
Contact area	（50±1） mm²
Contact pressure	（17.5±1）kPa
Probe descent speed	0.5-10mm/s adjustable
Overall dimensions (mm)	365×255×440
Net weight	23kg
Display	7 inch IPS HD screen, 1024*600 resolution capacitive touch
Data export	Export data from USB flash drive
print	Thermal printer
Communication interface	USB、WIFI（2.4G）
Power source	AC100-240V 50/60Hz 50W
Environmental condition	Indoor temperature (10-35) ℃, relative humidity <85%
