YYP-PL Tissue Tensile Strength Tester –Pneumatic type

Short Description:

  1. Product Description

The tisse tensile tester YYPPL is a basic instrument for testing the physical properties of materials

such as tension, pressure (tensile). The vertical and multi-column structure is adopted, and the

chuck spacing can be arbitrarily set within a certain range. The stretching stroke is large, the

running stability is good, and the test accuracy is high. The tensile testing machine is widely

used in fiber, plastic, paper, paper board, film and other non-metallic materials top pressure, soft

plastic packaging heat sealing strength, tearing, stretching, various puncture, compression,

ampoule breaking force, 180 degrees peel, 90 degrees peel, shear force and other test projects.

At the same time, the instrument can measure paper tensile strength, tensile strength,

elongation, breaking length, tensile energy absorption, tensile finger

Number, tensile energy absorption index and other items. This product is suitable for medical,

food, pharmaceutical, packaging, paper and other industries.















  1. Product Features:
    1. The design method of the imported instrument clamp is adopted to avoid the detection error caused by the operator because of the operation technical problems.
    2. Imported customized high sensitivity load element, imported lead screw to ensure accurate displacement
    3. Can be arbitrarily selected in the speed range of 5-600mm/min, this function can meet the 180° peel, ampoule bottle breaking force, film tension and other samples detection.
    4. With tensile force, plastic bottle top pressure test, plastic film, paper elongation, breaking force, paper breaking length, tensile energy absorption, tensile index, tensile energy absorption index and other functions.
    5. The motor warranty is 3 years, the sensor warranty is 5 years, and the whole machine warranty is 1 year, which is the longest warranty period in China.
    6. Ultra-long travel and large load (500 kg) structure design and flexible sensor selection facilitate the expansion of multiple test projects.





  1. Meeting standard:

TAPPI T494、ISO124、ISO 37、GB 8808、GB/T 1040.1-2006、GB/T 1040.2-2006、GB/T 1040.3-2006、GB/T 1040.4-2006、GB/T 1040.5-2008、GB/T 4850- 2002、 GB/T 12914-2008、GB/T 17200、 GB/T 16578.1-2008、 GB/T 7122、 GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、 GB 15811、ASTM E4、ASTM D882、ASTM D1938、 ASTM D3330、ASTM F88、 ASTM F904、JIS P8113、 QB/T 2358、 QB/T 1130 、 YBB332002-2015 、YBB00172002-2015 、YBB00152002-2015




  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    1. Technical Parameter:
    Index Parameters
    Measuring range (500N)50kg
    Force value resolution 1/10000
    Minimum resolution 0.001N
    Accuracy 0.3 grade
    Loading speed 5.5~600mm/min (adjustable)
    Velocity accuracy 1 ~ 10 mm/min ±1%, 10 ~ 600 mm/min ±0.5%
    Sample width ≤80mm ((can be customized test fixture according to customer materials))
    Journey 1000mm (other stroke optional)

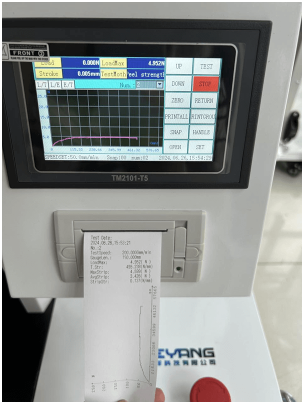

    Microcomputer control 3.5in lattice LCD display, curve waveform diagram display
    Man-machine interface window platform report editing, curve analysis diagram A4 printout (connect computer and printer)
    Printout Built-in modular integrated thermal printer
    Screw Custom Ball Screw (Taiwan)
    Working environment Temperature (20±10) ℃, humidity < 85%
    Overall dimension 460mm(L)×400 mm (W) ×1460mm (H)
    Net weight 70 kg
    Configuration Main machine, cutting fixture, power cord, warranty card, manual, printing paper
    Clamps Pneumatic clamping
